AtManagement

{
  "prompt": "You are building an application on the atPlatform (https://docs.atsign.com/core). Implement the application and any required agents as described in the JSON below.\n\n## Core SDK References\n- Primary SDK: at_client ^3.11.0 — https://pub.dev/packages/at_client\n- Flutter SDK: at_client_flutter ^1.0.1 — https://pub.dev/packages/at_client_flutter\n- All Atsign packages: https://pub.dev/packages?q=publisher%3Aatsign.org&sort=updated\n- Source code: https://github.com/atsign-foundation/at_client_sdk\n\n## Architecture Principles\n- Each person should have their own atSign (e.g. @alice, @bob) — this is the core identity unit.\n- Agents and applications can either have a dedicated atSign OR share an atSign with their owner, using namespaces for isolation. Multiple agents/apps on one atSign use different namespaces to keep their data separate.\n- Multiple instances of the same agent can run under a single atSign (see Multi-Agent Coordination below).\n- IoT devices can have their own atSign for autonomous operation, or be managed as keys under a person's atSign.\n- All data is end-to-end encrypted by default. Only the atSign owner holds the decryption keys.\n- There is NO application backend. atServers act as personal data stores and rendezvous points.\n- Use namespaces to separate application data (e.g. \"myapp\" becomes key.myapp@atsign).\n- Use AtKey with sharedWith to share encrypted data with specific atSigns.\n- Use AtKey with metadata.isPublic = true only for intentionally public data.\n- Do NOT store application data in local files. Store data as AtKeys so it automatically synchronizes across all of the atSign owner's devices. Local files are invisible to other devices; AtKeys flow via sync.\n\n## Initialization Pattern (Dart CLI / Agents)\n- Use AtClientManager.getInstance().setCurrentAtSign(atSign, namespace, preferences) to initialize.\n- Set AtClientPreference with rootDomain: AtRootDomain.atsignDomain, hiveStoragePath, commitLogPath, and namespace.\n- IMPORTANT: When running multiple agents or agent instances on the same machine, each MUST use a unique hiveStoragePath and commitLogPath (e.g. a temp directory with a UUID: Directory.systemTemp.createTempSync(\"agent_\").path). If two processes share the same hive path, the hive boxes will collide and throw errors.\n- For agent/CLI authentication use at_cli_commons (CLIBase): AtClient atClient = (await CLIBase.fromCommandLineArgs(args)).atClient; — handles arg parsing, atKeys loading, and PKAM auth in one line.\n- APKAM enrollment for new devices is supported via EnrollmentService in at_client.\n\n## Flutter App Requirements\n- Use at_client_flutter (NOT at_onboarding_flutter which is deprecated and unmaintained).\n- Model your auth/onboarding screen on the at_client_flutter example app: https://github.com/atsign-foundation/at_client_sdk/tree/trunk/packages/at_client_flutter/example\n  Study both main.dart (UI/navigation) and walkthrough.dart (all auth flows with error handling).\n\n### Welcome / Auth Screen (must support all four workflows)\n### Welcome / Auth Screen (must support all 4 workflows)\n1. **Login from Keychain**: KeychainStorage().getAllAtsigns() → AtSignSelectionDialog(existingAtSigns: list) → AtAuthRequest(atSign, atKeysIo: KeychainAtKeysIo()) → PkamDialog → setCurrentAtSign().\n2. **Onboard a New atSign (Registrar flow)**: Follow the `onboard()` function in walkthrough.dart from the at_client_flutter example app (https://github.com/atsign-foundation/at_client_sdk/tree/trunk/packages/at_client_flutter/example). Flow: AtSignSelectionDialog.show(context) → RegistrarCramDialog.show(context, authRequest as AtOnboardingRequest, registrar: registrar) → CramDialog.show(context, request: authRequest, cramKey: cramKey) → _setupAtClient(). Use RegistrarService(registrarUrl: \"my.atsign.com\", apiKey: \"5f93a2fa-2e3b-4332-9924-c29cc6e164ba\").\n3. **APKAM enrollment (new device)**: AtSignSelectionDialog → ApkamActivationDialog.show(atSign, rootDomain, appName, deviceName, namespaces) → waits for approval on an already-authorized device → AtAuthRequest(atSign, atAuthKeys: enrollmentResponse.atAuthKeys) → PkamDialog → setCurrentAtSign().\n\n4. **Login via .atKeys file**: AtKeysFileDialog.show() returns FileAtKeysIo → extract atSign from filename → AtAuthRequest(atSign, atKeysIo: fileAtKeysIo) → PkamDialog(backupKeys: [KeychainAtKeysIo()]) → setCurrentAtSign().\n### Post-Auth Setup (all workflows end here)\n- Get app support directory, create AtClientPreference with rootDomain, namespace, hiveStoragePath, commitLogPath.\n- Call AtClientManager.getInstance().setCurrentAtSign(atSign, namespace, prefs, atChops: response.atChops, atLookUp: response.atLookUp).\n\n### In-App atSign Management (in the authenticated UI)\n- **Switch atSign**: Let user pick a different atSign from the keychain and re-authenticate (KeychainStorage().getAllAtsigns() → select → re-auth).\n- **Logout**: Call AtClientManager.getInstance().reset() and navigate back to the auth screen.\n- **Delete atSign from device**: Call keychainStorage.removeAtsignFromKeychain(atSign) to remove keys, then navigate to auth screen.\n- **Export atKeys**: Let user save their keys to a file via FileAtKeysIo for backup.\n- **Clear all**: keychainStorage.deleteAllAtKeysData() to wipe all stored atSigns from this app.\n\n## AtKey Construction\n- Cascade: AtKey()..key = \"name\"..namespace = \"app\"..sharedWith = \"@bob\" — matches official examples.\n- Typed builders (preferred for type safety): AtKey.self(\"name\"), AtKey.shared(\"name\", namespace: \"app\"), AtKey.public(\"name\"), AtKey.local(\"name\", \"@alice\").\n- AtKey.fromString(\"@bob:name.app@alice\") to parse a full atProtocol key string.\n- All key names are forced lowercase. Values remain case-sensitive.\n\n## Data Operations\nIMPORTANT: Always store application data as AtKeys rather than writing to local files. AtKeys automatically synchronize across all of the atSign owner's devices over time. Local files stay on a single machine and break the atPlatform's multi-device data flow model.\n- put(AtKey, value, {PutRequestOptions? putRequestOptions}): Store/share data. Use sharedWith for encrypted sharing with another atSign.\n  IMPORTANT: To send data directly to the remote (cloud) secondary server, pass putRequestOptions: PutRequestOptions()..useRemoteAtServer = true. Without this, put() writes only to the local secondary and waits for sync.\n- get(AtKey, {GetRequestOptions? getRequestOptions}): Retrieve data. Returns AtValue with .value property.\n  IMPORTANT: To read from the remote secondary rather than the local cache, pass getRequestOptions: GetRequestOptions()..useRemoteAtServer = true. Use ..bypassCache = true to skip cached data from other atSigns.\n- delete(AtKey, {DeleteRequestOptions? deleteRequestOptions}): Remove data. Pass DeleteRequestOptions()..useRemoteAtServer = true to delete directly from the cloud secondary.\n- uploadFile / downloadFile / shareFiles: Built-in file transfer methods on AtClient — no separate package needed.\n- notificationService.notify(NotificationParams.forUpdate(key, value: data)): Push data to another atSign in near real-time. NOTE: NotificationParams.forText() is deprecated — use forUpdate() instead.\n- notificationService.subscribe(regex: pattern, shouldDecrypt: true): Listen for incoming notifications.\n- KeyStream / ListKeyStream / MapKeyStream / SetKeyStream: Reactive stream-based key watching — subscribe to live changes on specific keys or key patterns.\n- For RPC patterns use the built-in AtRpc / AtRpcClient classes (production-ready since 3.9.1, not experimental).\n\n## Multi-Agent Coordination\nWhen building agents that may run as multiple instances (for load balancing or redundancy), two proven patterns exist:\n### Pattern 1: Immutable Mutex Race\n- Create an AtKey with Metadata()..immutable = true and a short ..ttl (e.g. 60000ms).\n- Each agent instance tries to put() this key with useRemoteAtServer = true when a task arrives.\n- Only the first put() succeeds (the immutable flag causes subsequent puts to throw). The winner processes the task; losers skip it.\n- This gives automatic distributed locking with no external coordination service. The TTL auto-cleans the mutex key.\n- Reference: https://github.com/cconstab/personalagent/blob/main/agent/lib/services/at_platform_service.dart\n### Pattern 2: Ephemeral Stateless Instances (NoOp Sync)\n- Use ServiceFactoryWithNoOpSyncService() when creating the AtClient — this disables the sync service entirely.\n- Use per-session ephemeral storage — each instance MUST have a unique hiveStoragePath and commitLogPath (e.g. Directory.systemTemp.createTempSync(\"agent_\").path). If two instances share the same hive path on the same machine, the hive boxes will collide and throw errors.\n- Each instance subscribes to notifications and handles sessions independently, routed by unique session IDs.\n- No mutex needed because work is partitioned by session/notification routing, not raced for.\n- This is the pattern used by srvd, sshnpd, and npp in NoPorts.\n- Reference: https://github.com/atsign-foundation/noports/blob/trunk/packages/dart/sshnoports/bin/srvd.dart\n\n## Networking, File Transfer & Access Control\nThese patterns extend the atPlatform beyond data sharing into TCP connectivity, bulk file movement, and policy enforcement:\n\n### E2E Encrypted TCP Tunnels (NoPorts)\nUse noports_core to create E2E encrypted TCP connections with zero open inbound ports on either side.\nA local listening socket tunnels traffic through the atPlatform to a remote device — no firewall changes needed.\n- Pub package: noports_core. Key class: Npt. CLI: npt binary.\n- Requires a socket rendezvous (srvd) atSign and a daemon on the remote device.\n- Docs: https://docs.noports.com/ and https://pub.dev/packages/noports_core\n\n### Encrypted File Transfer\nFor bulk file transfer: encrypt the file client-side, upload the encrypted blob to a web file service, then send the URL and encryption key to the recipient as an encrypted AtKey. The recipient downloads the blob and decrypts locally.\n- For simpler cases use atClient.uploadFile() / downloadFile() / shareFiles() which handle encryption automatically.\n- Store config (e.g. storage server URL) as AtKeys — never local files.\n- Reference implementation: https://github.com/cconstab/furl\n\n### Policy Enforcement (NPA/NPP)\nFor access control: run a policy service on a dedicated atSign that receives authorization requests via AtRpc and returns allow/deny decisions.\n- Policy data is stored as encrypted AtKeys — never local files. Syncs across devices automatically.\n- The pattern is reusable for any authorization logic. See NoPorts NPA/NPP for a working implementation.\n- Reference: https://github.com/atsign-foundation/noports (npp_atserver.dart, npp.dart)\n\n## Key Conventions\n- Document all AtKey naming conventions, namespaces, and data flows in the generated code comments.\n- Document how to create and manage atKeys files for agents and applications.\n- Use meaningful key names: e.g. \"temperature.iot\" not \"data123\".\n- Use AtKey.local() for data that should never sync to the cloud secondary.\n- The isDedicated parameter on put()/get() is deprecated and ignored — do not use it.\n- CAUTION: at_stream is pre-release (0.1.0-dev.1) and not recommended for production. Use built-in KeyStream classes or notificationService.subscribe() for reactive patterns instead.\n\n## Project Continuity\nWhen generating code from this specification, create two files:\n\n### ATPLATFORM_GUIDELINES.md (platform reference)\nCreate ATPLATFORM_GUIDELINES.md in the project root as a pure atPlatform SDK reference. This file is the single source of truth for future LLM sessions — they will read it before making changes.\n- IMPORTANT: You MUST include EVERY section from this prompt in that file, even sections that are not used by the current application (e.g. Encrypted File Transfer, Policy Enforcement, Multi-Agent Coordination). They serve as a reference for future development and must not be omitted.\n- The required sections are: Core SDK References, Architecture Principles, Initialization Pattern, Flutter App Requirements, AtKey Construction, Data Operations, Multi-Agent Coordination (both patterns), Networking File Transfer & Access Control (TCP Tunnels, Encrypted File Transfer, Policy Enforcement), Key Conventions, and Project Continuity.\n- Do NOT put project-specific details (data flows, key tables, node mappings etc.) in this file — those belong in README.md.\n- At the top of the file add: \"Generated by AI Architect — https://aiarchitect.atsign.com/\"\n- At the bottom add: \"To update these guidelines, open your diagram in the latest version of AI Architect and re-export. Newer versions may have updated SDK references, patterns, and best practices.\"\n- If an ATPLATFORM_GUIDELINES.md already exists in the project, compare it with the current prompt. If the current prompt is newer or more complete, update the file. Preserve any developer-added \"## Project Notes\" section.\n\n### README.md (project documentation)\nCreate or update README.md with all project-specific details: node/atSign mappings, namespace, data flow diagrams, notification key tables, JSON formats, and any application-specific configuration. This is where developers and future LLM sessions learn what this particular application does and how its data flows.\n",
  "notes": [],

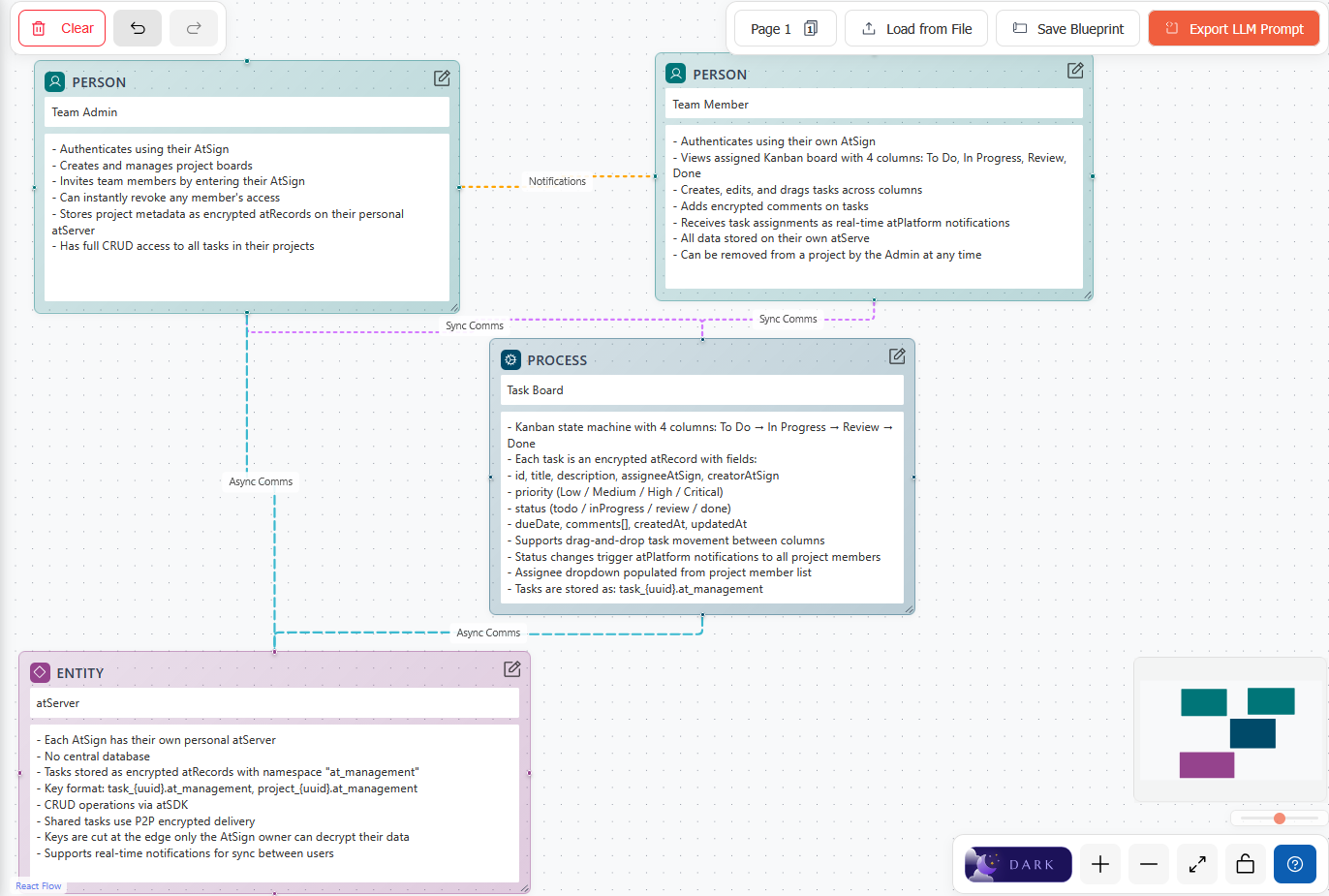

  "pages": [
    {
      "name": "Page 1",
      "nodes": [
        {
          "id": "node_1774845825461_jvqf5d46q",
          "type": "person",
          "label": "Team Admin",

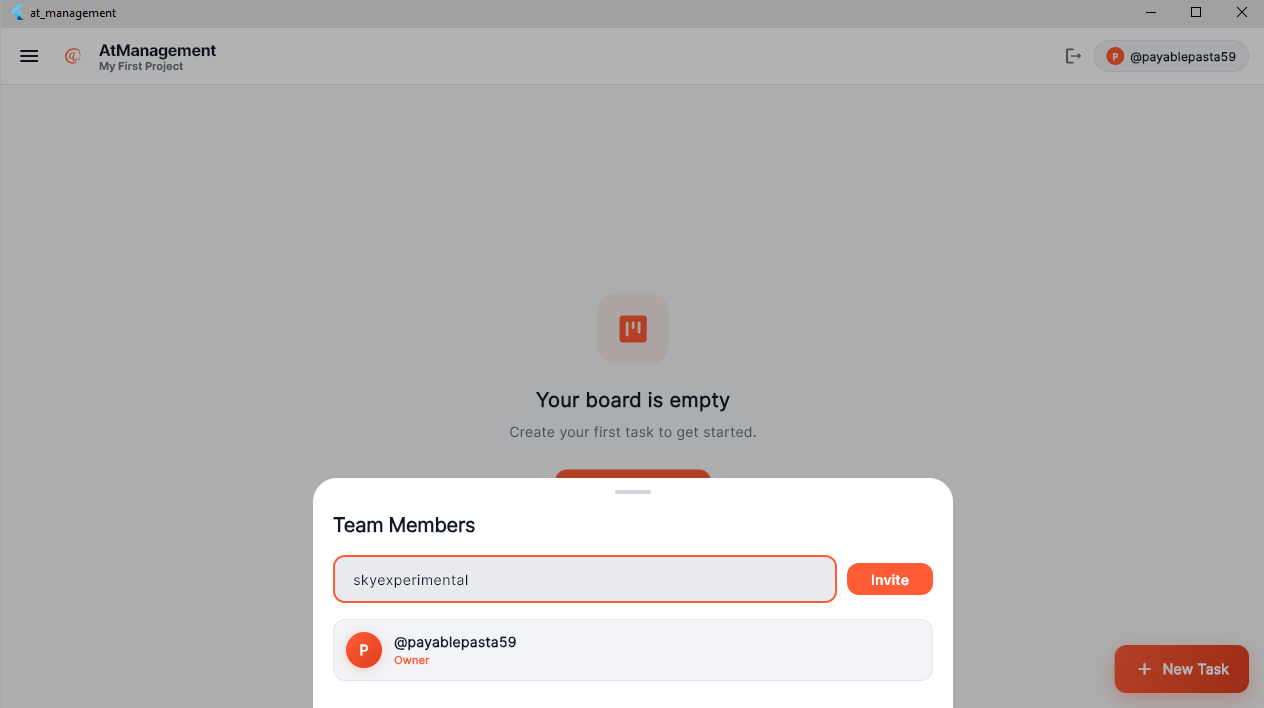

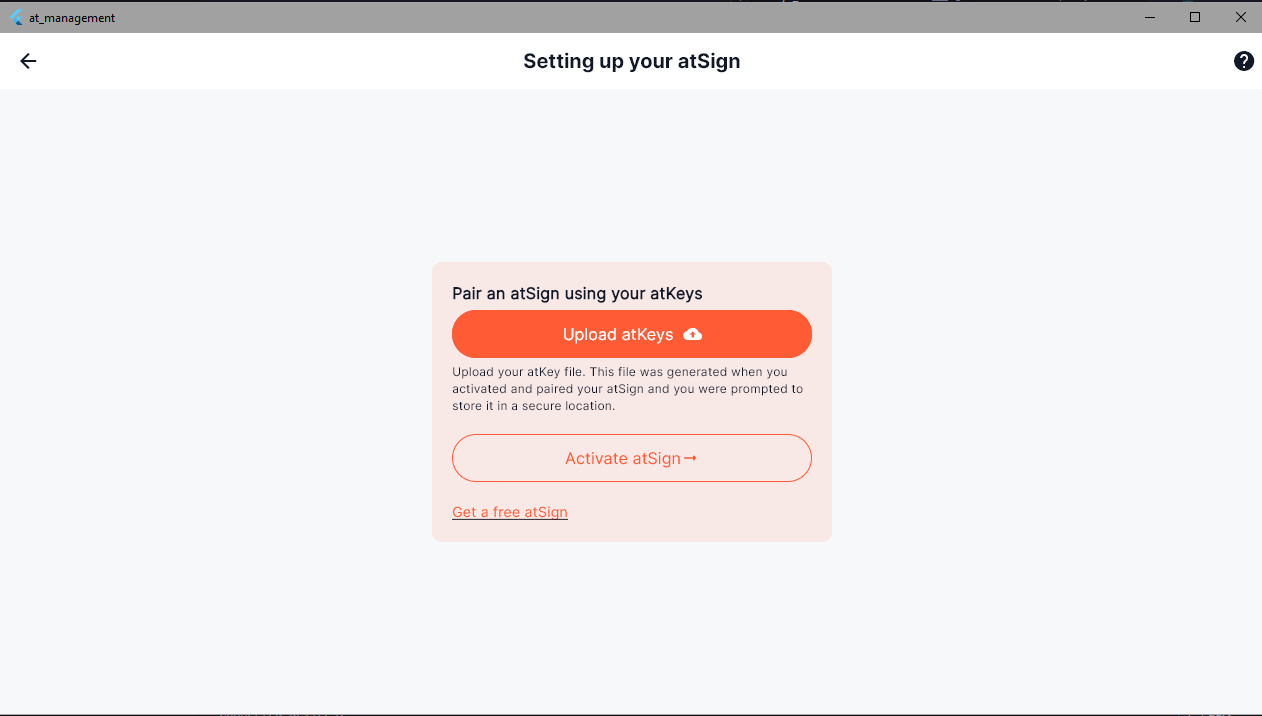

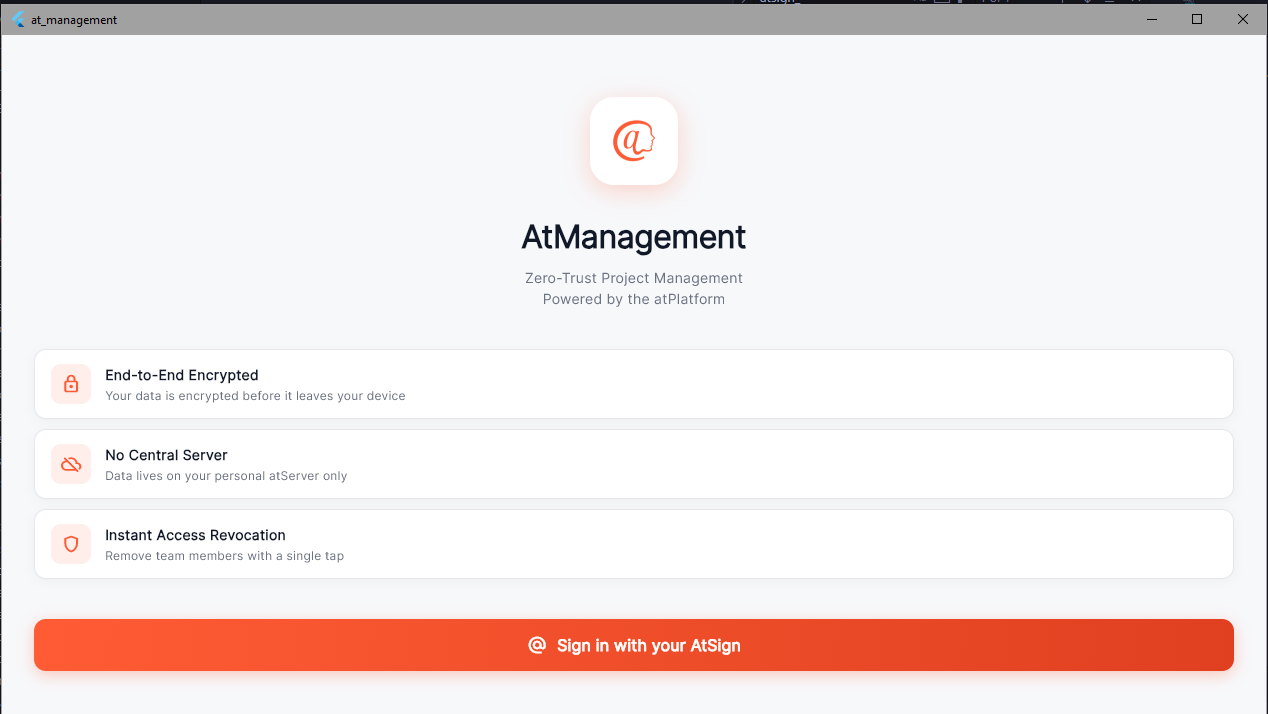

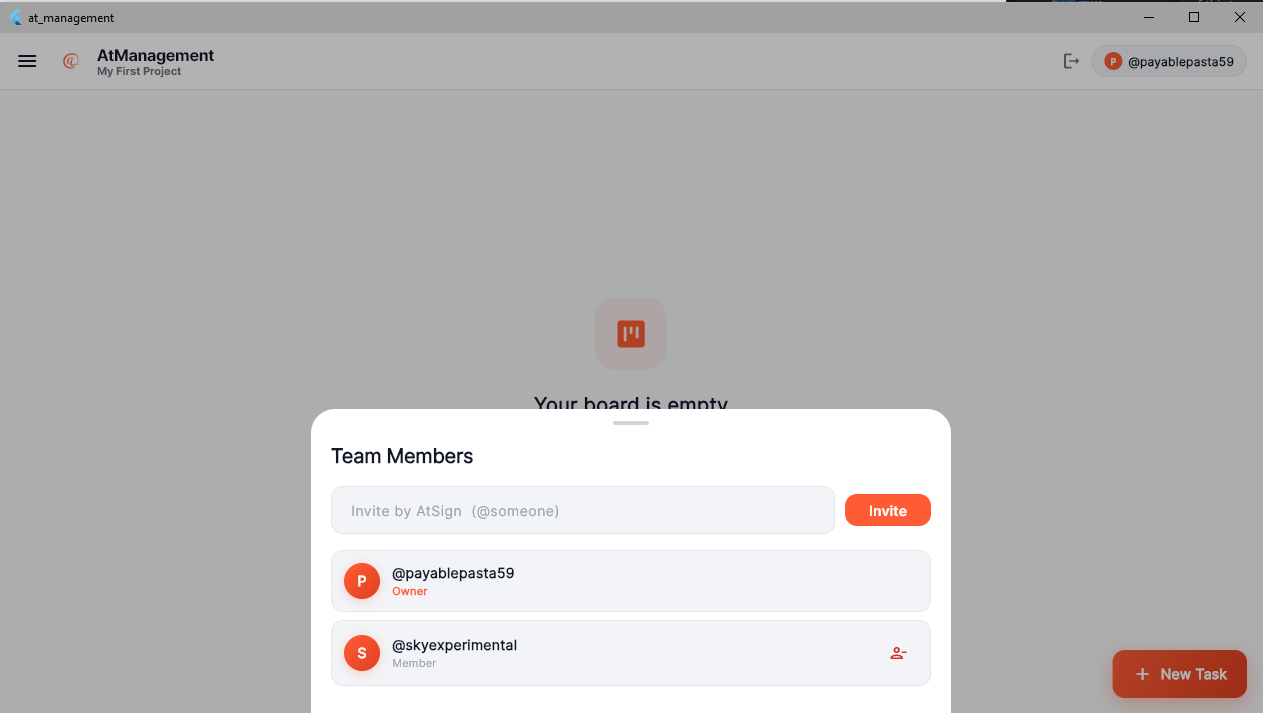

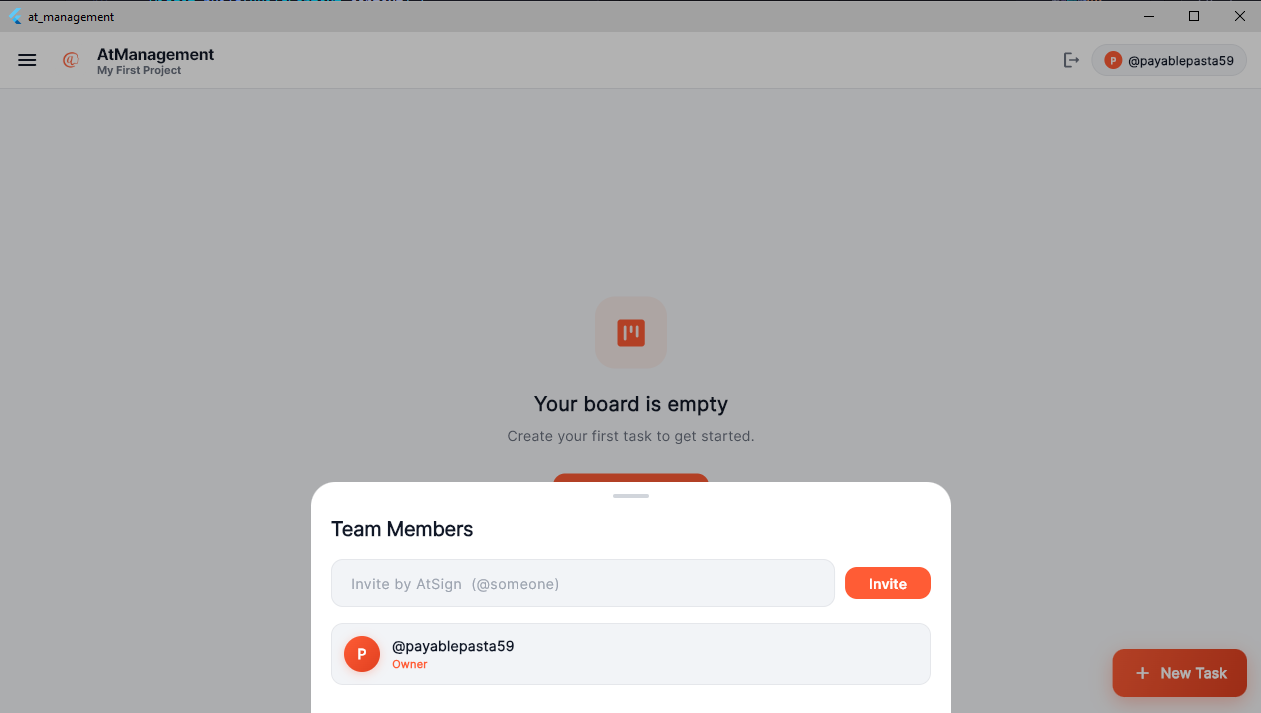

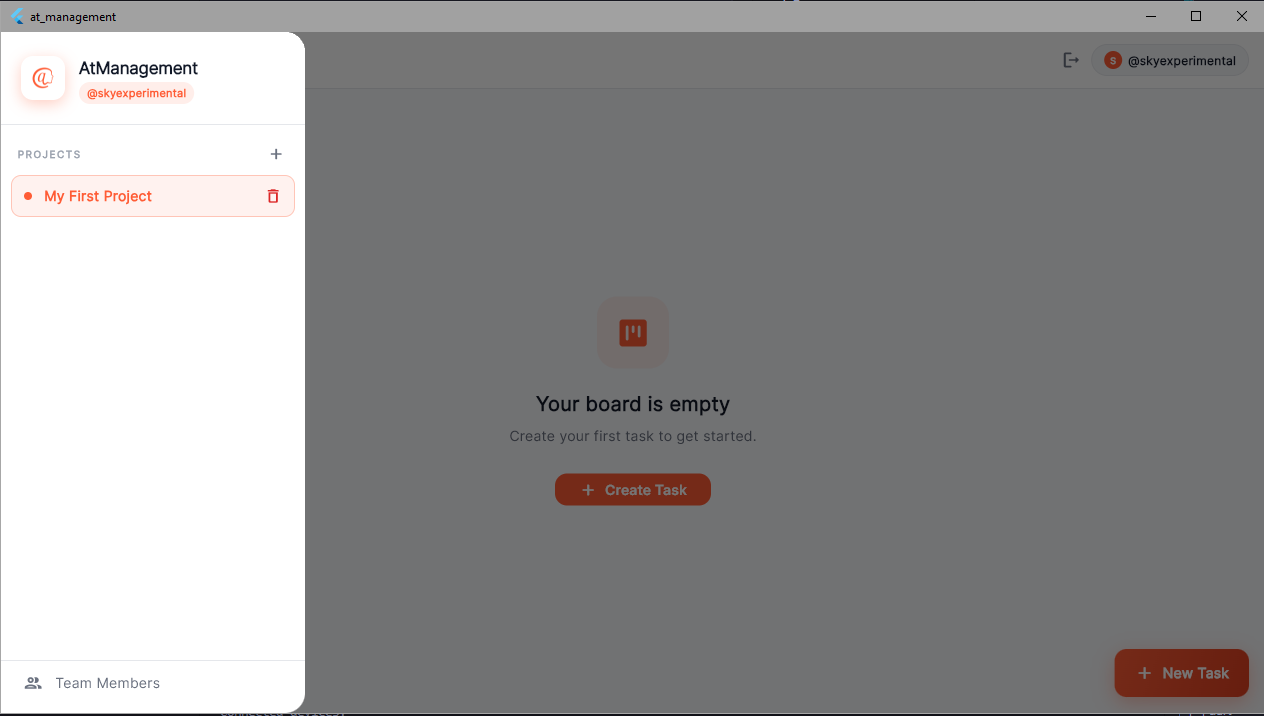

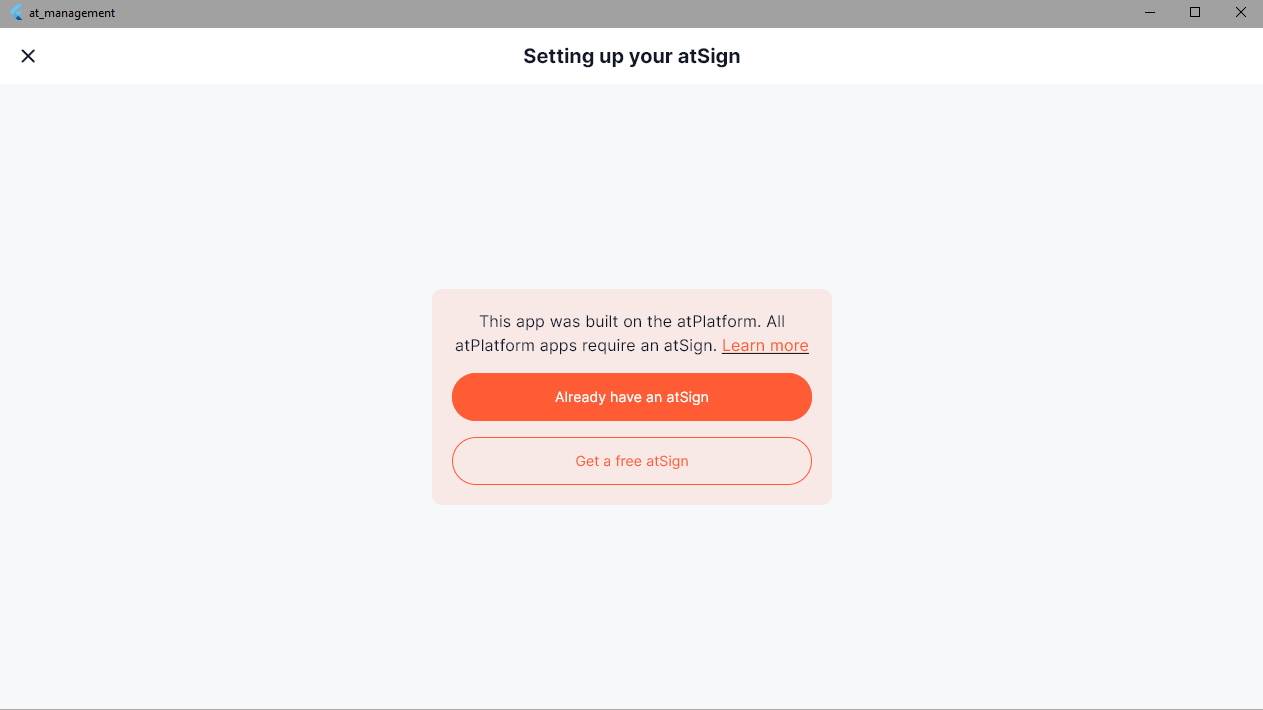

          "notes": "- Authenticates using their AtSign \n- Creates and manages project boards\n- Invites team members by entering their AtSign\n- Can instantly revoke any member's access \n- Stores project metadata as encrypted atRecords on their personal atServer\n- Has full CRUD access to all tasks in their projects",
          "role": "Each person gets their own atSign. Use AtClientManager.getInstance().setCurrentAtSign() to initialize their client. They own their data and control sharing via AtKey.sharedWith."
        },
        {
          "id": "node_1774845836629_n2kq461fl",
          "type": "person",
          "label": "Team Member",

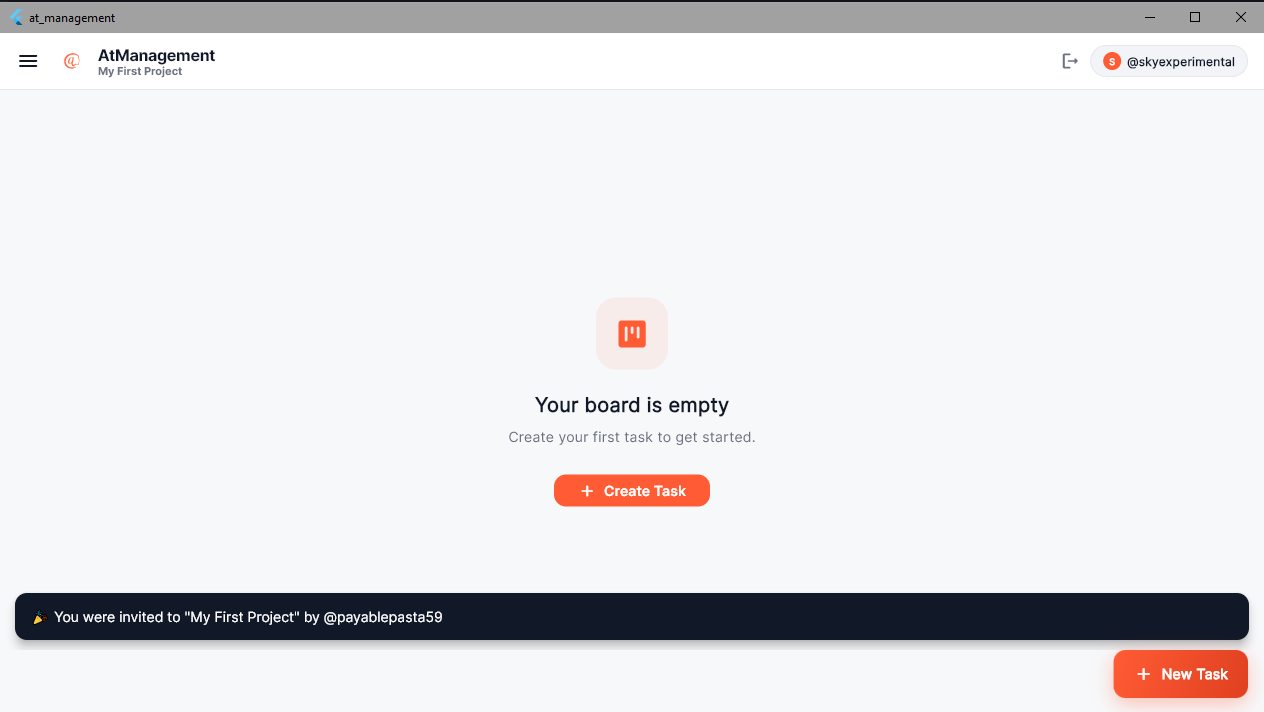

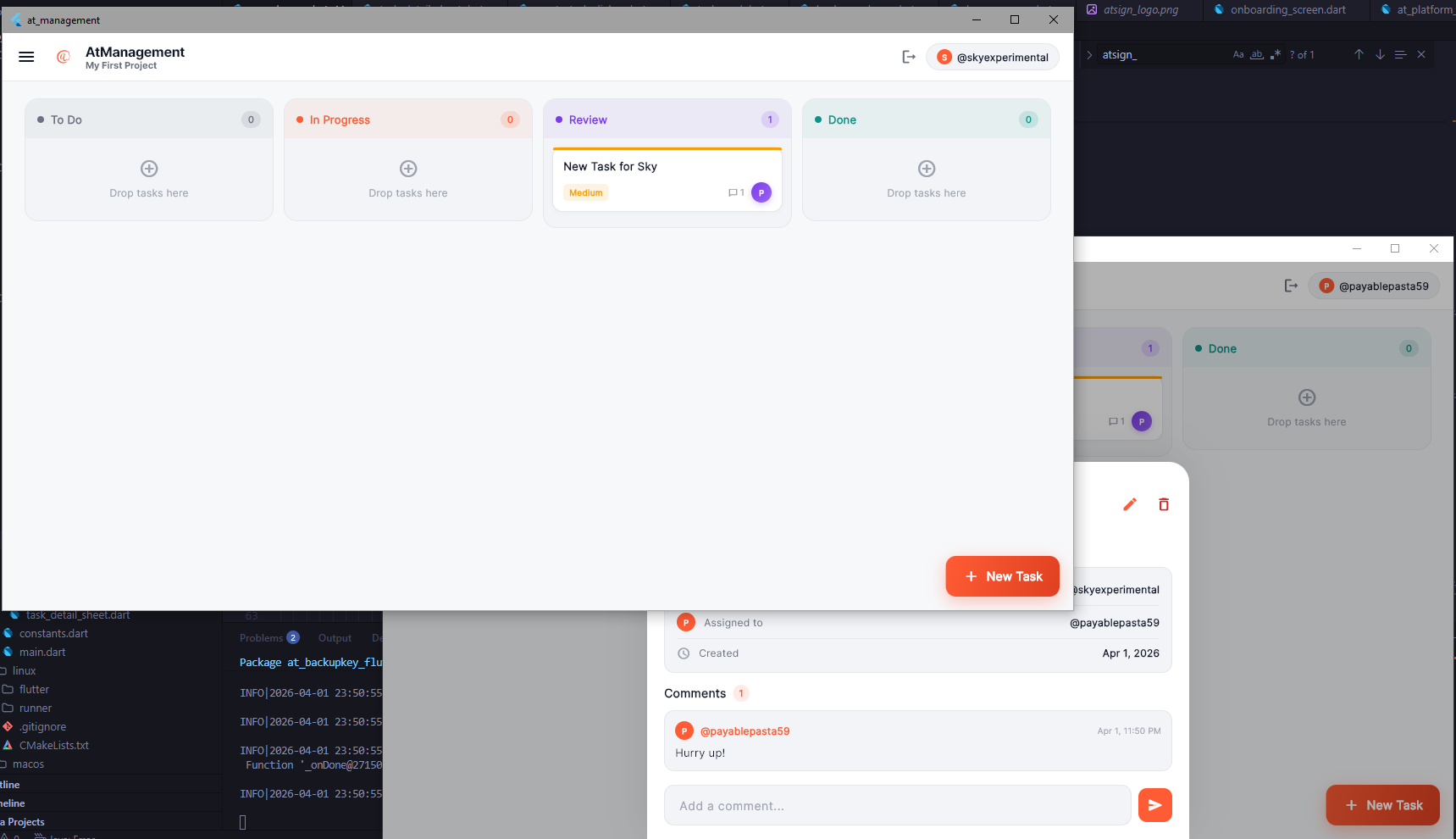

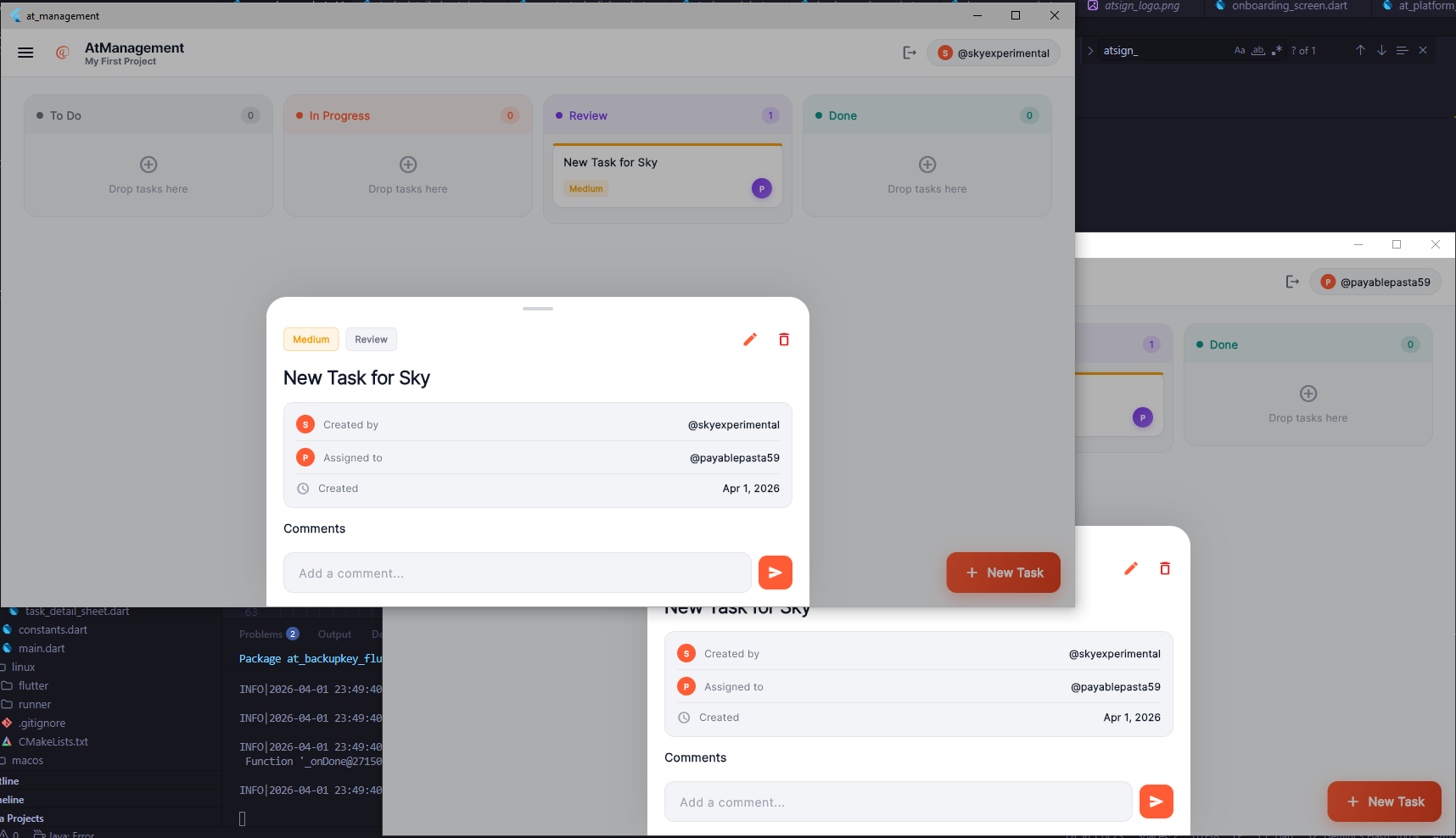

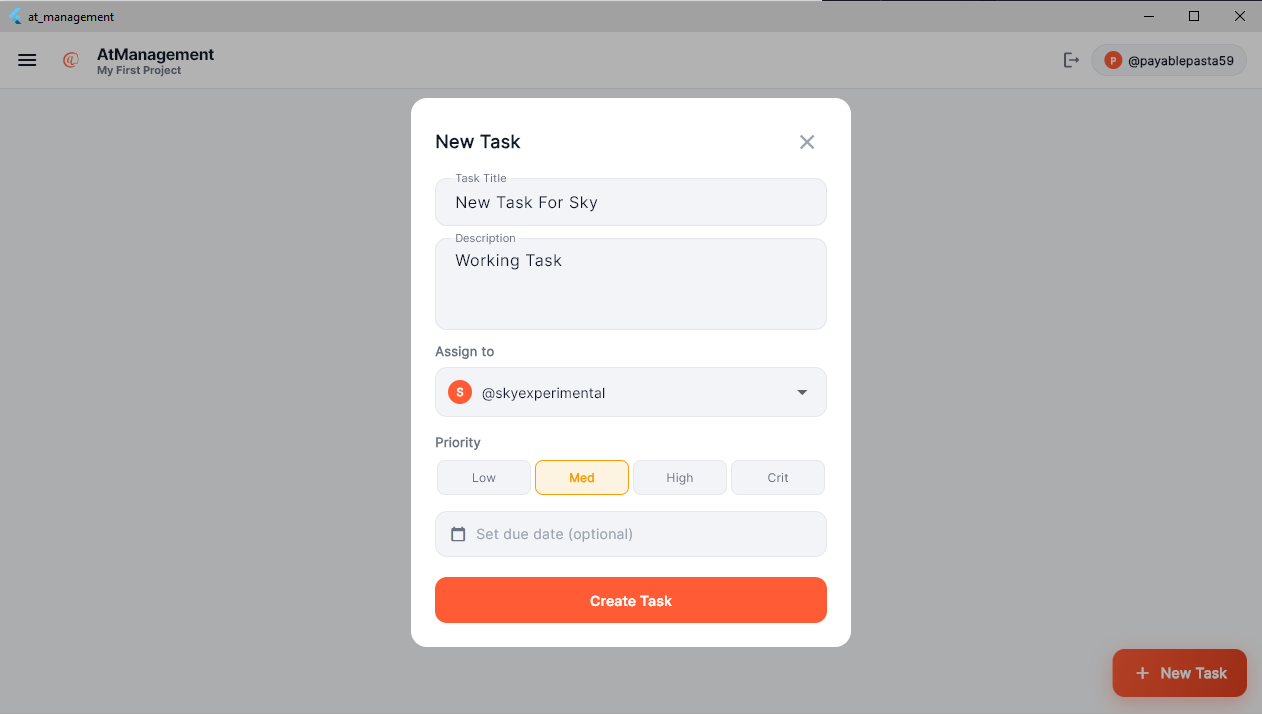

          "notes": "- Authenticates using their own AtSign\n- Views assigned Kanban board with 4 columns: To Do, In Progress, Review, Done\n- Creates, edits, and drags tasks across columns\n- Adds encrypted comments on tasks\n- Receives task assignments as real-time atPlatform notifications\n- All data stored on their own atServe\n- Can be removed from a project by the Admin at any time",
          "role": "Each person gets their own atSign. Use AtClientManager.getInstance().setCurrentAtSign() to initialize their client. They own their data and control sharing via AtKey.sharedWith."
        },
        {
          "id": "node_1774845851473_sgoq5xgwj",
          "type": "process",
          "label": "Task Board",

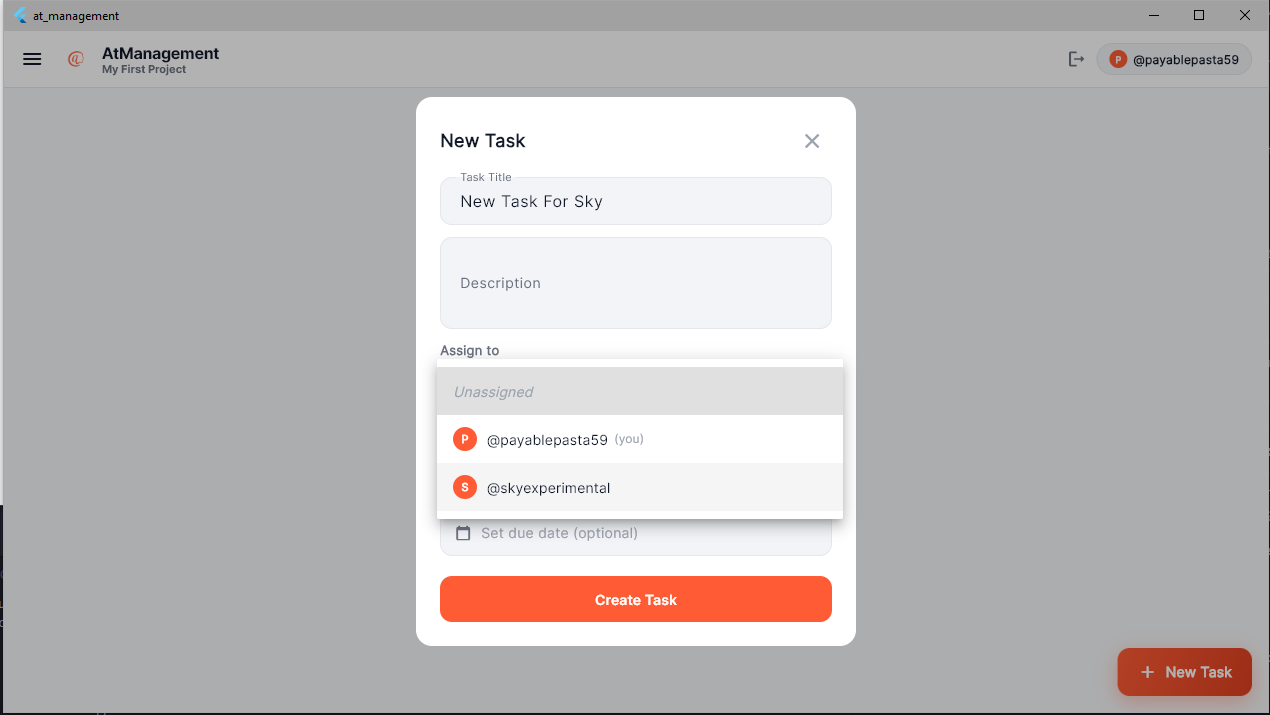

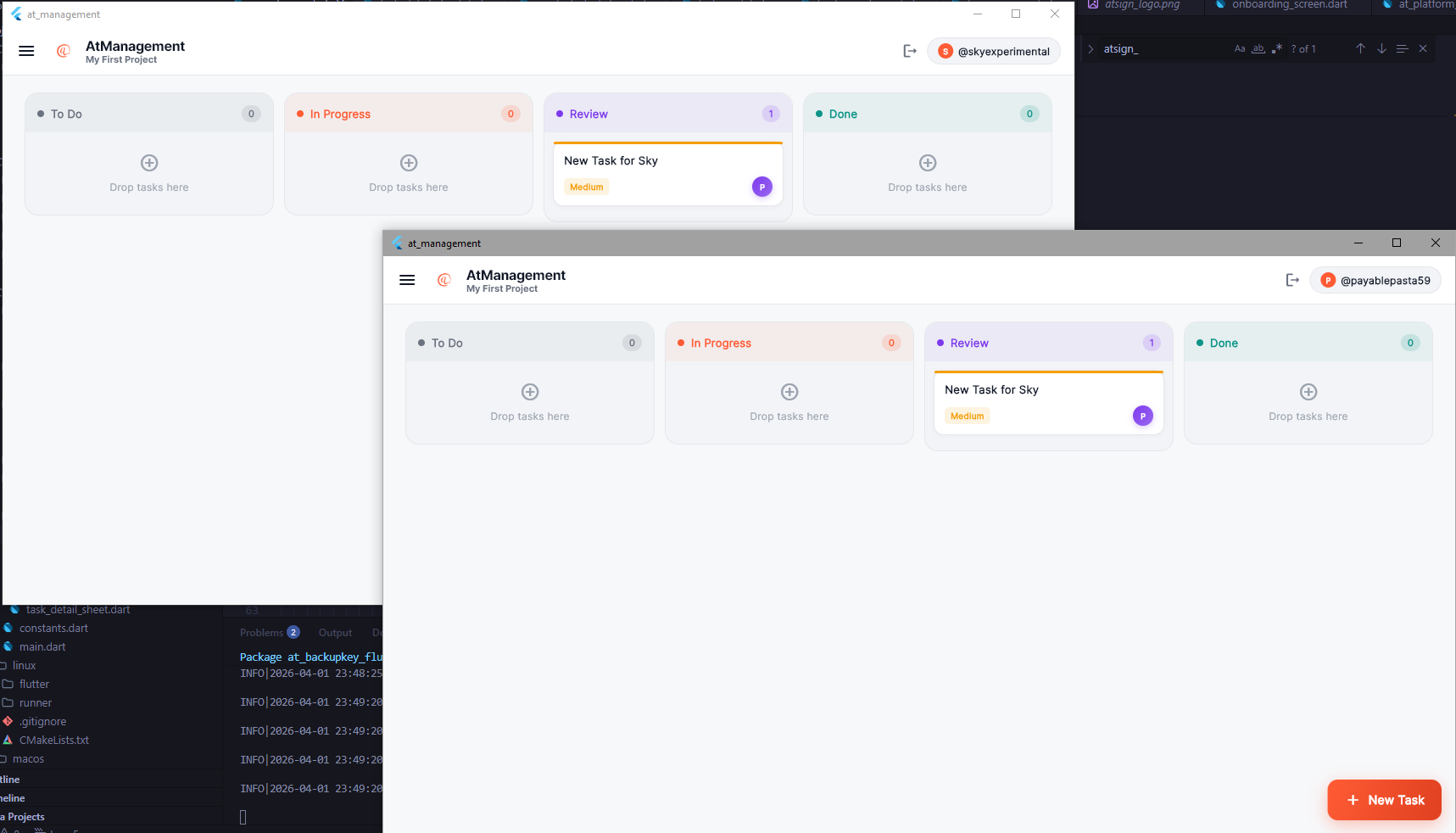

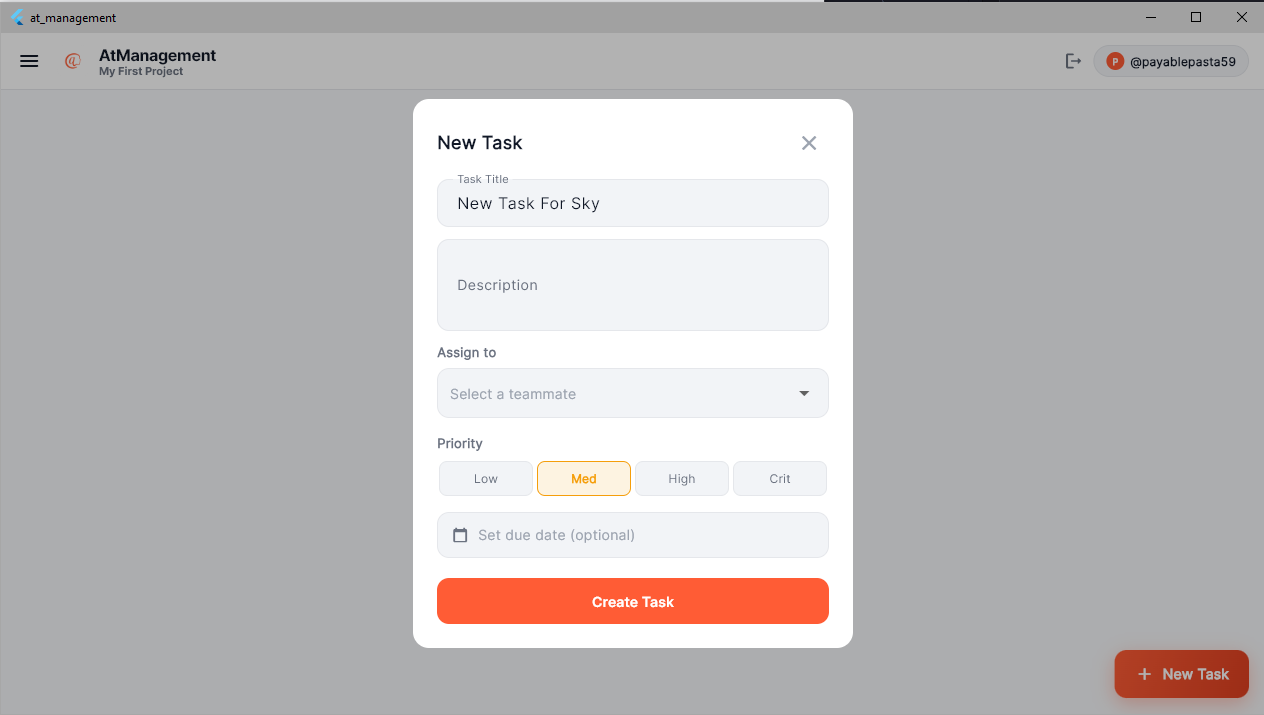

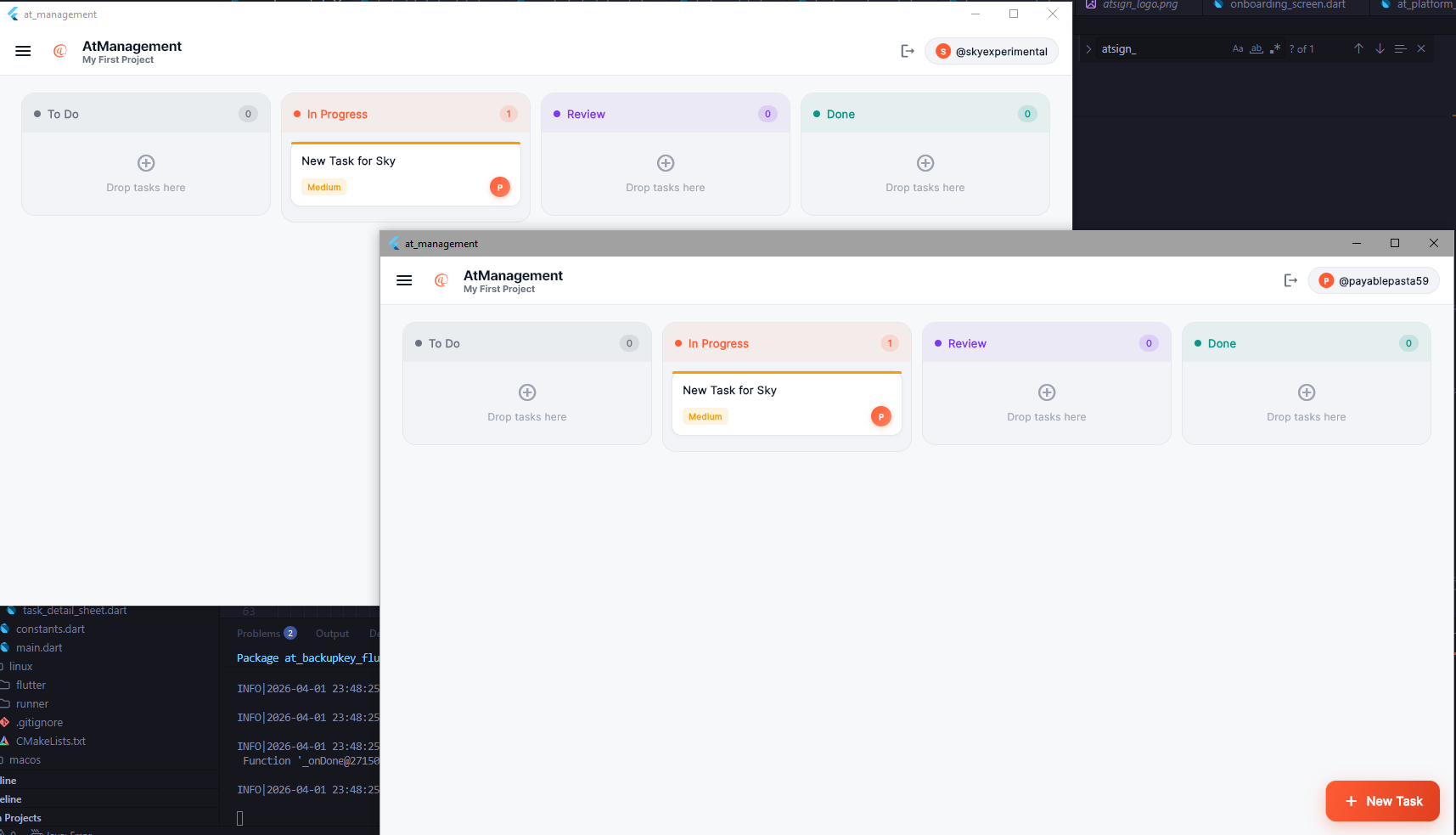

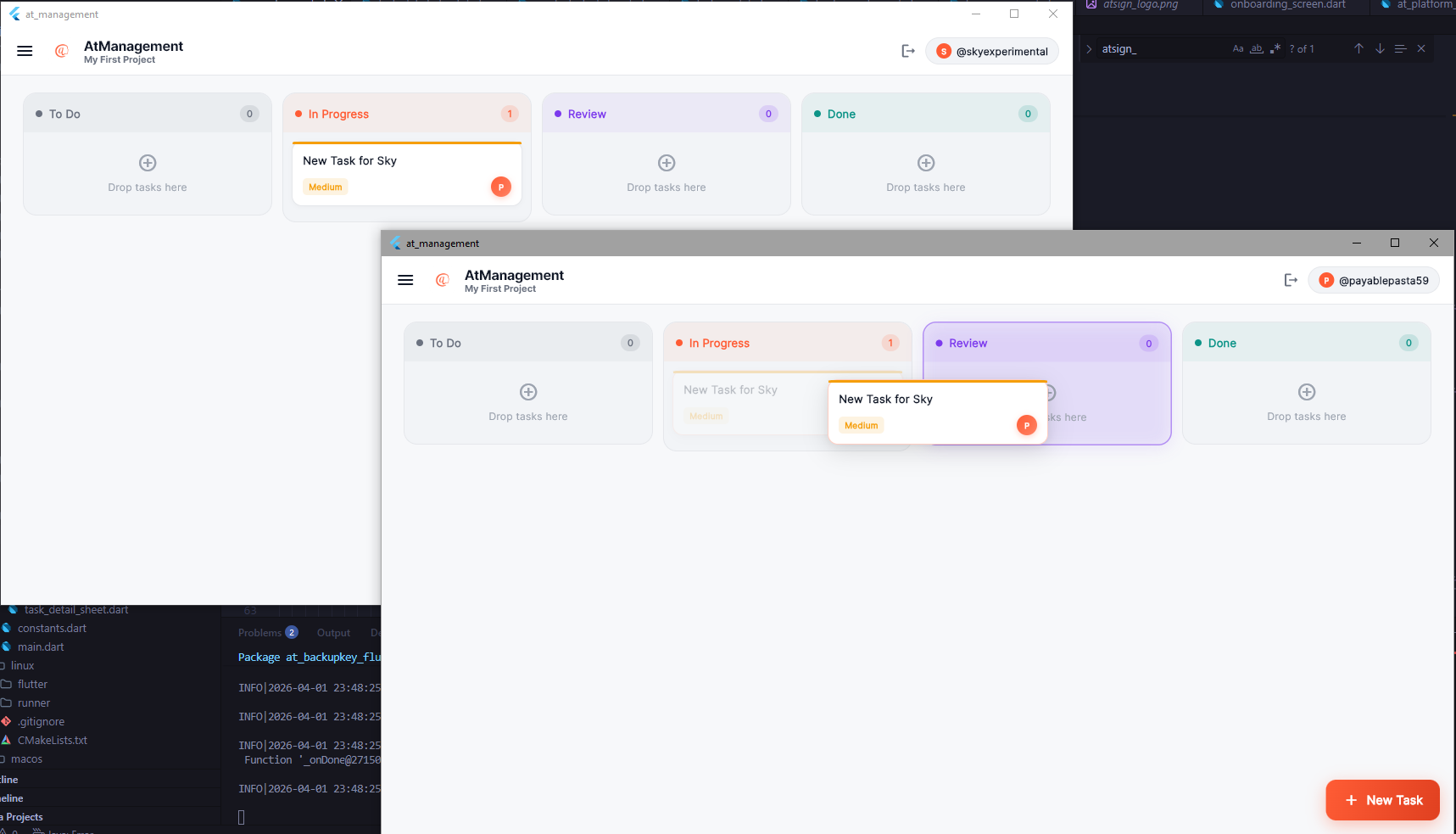

          "notes": "- Kanban state machine with 4 columns: To Do → In Progress → Review → Done\n- Each task is an encrypted atRecord with fields:\n  - id, title, description, assigneeAtSign, creatorAtSign\n  - priority (Low / Medium / High / Critical)\n  - status (todo / inProgress / review / done)\n  - dueDate, comments[], createdAt, updatedAt\n- Supports drag-and-drop task movement between columns\n- Status changes trigger atPlatform notifications to all project members\n- Assignee dropdown populated from project member list\n- Tasks are stored as: task_{uuid}.at_management",
          "role": "Implement processes as Dart functions or agents that read/write AtKeys — never local files (AtKeys sync across devices, local files do not). Use notificationService.subscribe() to trigger processes on incoming data, and put()/notify() to output results. For multi-instance agents on the same machine, each must use a unique hive storage path (e.g. Directory.systemTemp.createTempSync). Use an immutable mutex (Metadata()..immutable=true + useRemoteAtServer) so only one instance handles each task, or use ServiceFactoryWithNoOpSyncService() with per-instance ephemeral storage for stateless scaling."
        },
        {
          "id": "node_1774845886544_dk4shgpqx",
          "type": "entity",
          "label": "atServer",
          "notes": "- Each AtSign has their own personal atServer \n- No central database\n- Tasks stored as encrypted atRecords with namespace \"at_management\"\n- Key format: task_{uuid}.at_management, project_{uuid}.at_management\n- CRUD operations via atSDK\n- Shared tasks use P2P encrypted delivery\n- Keys are cut at the edge only the AtSign owner can decrypt their data\n- Supports real-time notifications for sync between users",
          "role": "Represent entities as namespaced AtKeys. Use AtKey.shared(\"data\", namespace: \"app\") or AtKey()..key=\"data\"..namespace=\"app\"..sharedWith=\"@other\" to store and share entity data end-to-end encrypted. Use KeyStream to reactively watch for changes."
        }
      ],
      "connections": [
        {
          "from": "Team Admin",
          "fromId": "node_1774845825461_jvqf5d46q",
          "to": "Team Member",
          "toId": "node_1774845836629_n2kq461fl",
          "type": "notification",
          "notes": "",
          "hint": "For near real-time event-driven communication between atSigns. Receiver subscribes with: atClient.notificationService.subscribe(regex: \"pattern\", shouldDecrypt: true).listen((notification) { ... }). Sender pushes with: atClient.notificationService.notify(NotificationParams.forUpdate(key, value: data)). Notifications are lightweight, support regex filtering, and auto-reconnect on network loss. See: https://pub.dev/documentation/at_client/latest/at_client/NotificationService/subscribe.html"
        },
        {
          "from": "Team Admin",
          "fromId": "node_1774845825461_jvqf5d46q",
          "to": "Task Board",
          "toId": "node_1774845851473_sgoq5xgwj",
          "type": "sync",
          "notes": "",
          "hint": "Use notificationService.notify() with NotificationParams.forUpdate(key, value: data) to send data and wait for a delivery confirmation. The sender gets a NotificationResult indicating delivered/errored status. Best when you need confirmation that the remote atSign received the data. Combine with notificationService.subscribe() on the receiving side. See: https://pub.dev/documentation/at_client/latest/at_client/NotificationService/notify.html"
        },
        {
          "from": "Team Member",
          "fromId": "node_1774845836629_n2kq461fl",
          "to": "Task Board",
          "toId": "node_1774845851473_sgoq5xgwj",
          "type": "sync",
          "notes": "",
          "hint": "Use notificationService.notify() with NotificationParams.forUpdate(key, value: data) to send data and wait for a delivery confirmation. The sender gets a NotificationResult indicating delivered/errored status. Best when you need confirmation that the remote atSign received the data. Combine with notificationService.subscribe() on the receiving side. See: https://pub.dev/documentation/at_client/latest/at_client/NotificationService/notify.html"
        },
        {
          "from": "Task Board",
          "fromId": "node_1774845851473_sgoq5xgwj",
          "to": "atServer",
          "toId": "node_1774845886544_dk4shgpqx",
          "type": "async",
          "notes": "",
          "hint": "Use atClient.put() to store data for another atSign without requiring them to be online — the data is written to your atServer and synced to theirs when they next connect. The receiving atSign retrieves it later with atClient.get(). This is fire-and-forget: ideal when you do not know if the recipient is online. IMPORTANT: By default put() writes to the local secondary and syncs later. To write directly to the cloud secondary, pass putRequestOptions: PutRequestOptions()..useRemoteAtServer = true. Similarly for get(), pass getRequestOptions: GetRequestOptions()..useRemoteAtServer = true to read from the remote secondary, or ..bypassCache = true to skip cached data from other atSigns. See: https://pub.dev/documentation/at_client/latest/at_client/AtClient/put.html and https://pub.dev/documentation/at_client/latest/at_client/GetRequestOptions-class.html"
        },
        {
          "from": "Team Admin",
          "fromId": "node_1774845825461_jvqf5d46q",
          "to": "atServer",
          "toId": "node_1774845886544_dk4shgpqx",
          "type": "async",
          "notes": "",
          "hint": "Use atClient.put() to store data for another atSign without requiring them to be online — the data is written to your atServer and synced to theirs when they next connect. The receiving atSign retrieves it later with atClient.get(). This is fire-and-forget: ideal when you do not know if the recipient is online. IMPORTANT: By default put() writes to the local secondary and syncs later. To write directly to the cloud secondary, pass putRequestOptions: PutRequestOptions()..useRemoteAtServer = true. Similarly for get(), pass getRequestOptions: GetRequestOptions()..useRemoteAtServer = true to read from the remote secondary, or ..bypassCache = true to skip cached data from other atSigns. See: https://pub.dev/documentation/at_client/latest/at_client/AtClient/put.html and https://pub.dev/documentation/at_client/latest/at_client/GetRequestOptions-class.html"
        }
      ]
    }
  ]
}
